- These NRC series thermistors are of an epoxy-resin coated type. They are designed as general purpose temperature sensors and cover a range of application fields.
- High speed response and enhanced reliability are made available by the compact design. Use of automatic production techniques has materialized low cost production.
- Designed to be compliant with the RoHS Directive, they are considerate to environmental hazards.
- For sensors and PCB compensation with battery packs and chargers coming first
| Parts No. | Dimension【mm】 | Dissipation constant(mW/℃) |
Rated wattage (mW) |
Operating temperature range.(℃) |
||||
|---|---|---|---|---|---|---|---|---|
| type | D | L1 | L2 | L3 | L4 | |||

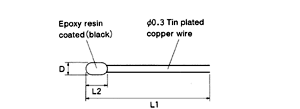

| NRC1 | 4.0MAX | （50） | 8.0MAX | _ | _ | 2.5 | 187 | −20℃〜＋100℃ |

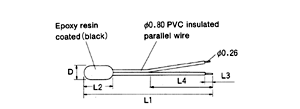

| NRC3 | 4.0MAX | （50） | 12.0MAX | 5±1 | 18±3 | 2.5 | 187 | −20℃〜＋100℃ |
in still air
#2：at 25℃
