Thermistor assemblies/For household and housing
For air conditioners and refrigerators
For air conditioners, coating type
Indoor and outdoor temperatures and air temperatures at suction and exhalation mouths will be detected.
For air conditioners, contained in connectors
Multiple sensors of such as a coating type and CAN type can be put together into one connector.
Temperature sensors that control inside temperature of refrigerators and heat exchanger temperatures.
For For air conditioners, coating type household appliances
Hot water
supplies
（with-leads type）
Temperature sensors
to control
temperatures
of incoming and
outgoing water and
bath tub water
Hot water supplies（integrated in a connector）
Temperature sensors
to control
temperatures
of incoming and
outgoing water and
bath tub water
For temperature of air discharged from microwave ovens
Temperature sensors to measure temperatures of air discharged from microwave ovens and control microwave oven operation
For surface temperature sensing
Temperature sensors most suitable for sensing surface temperatures of solid objects
Water-resistant temperature sensors usable in temperatures up to as high as 200℃

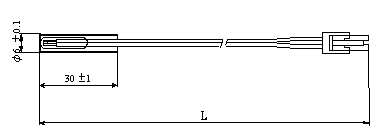

For air conditioners, coating type
| Zero load resistance | B constant | Dissipation constant | Thermal time constant | Operating temp. range |
|---|---|---|---|---|
| R25：10KΩ | B25/50：3950K | 2.5mW/℃（in still air） | 8.0 sec. max.（in stirred water） | -20℃ to 105℃ |
- Characteristics and connectors may be customized. （Please contact our sales representative.）
- Insulation resistance：100MΩ, min.
Withstanding voltage：1500V AC for 1 minute or 1800V AC for 1 sec
Press here to return to the top of this page.

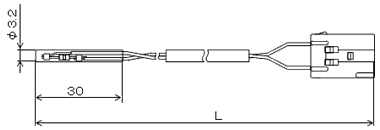

For air conditioners, CAN type
| Zero load resistance | B constant | Dissipation constant | Thermal time constant | Operating temp. range |
|---|---|---|---|---|
| R25：10KΩ | B25/50：3950K | 5.0mW/℃（in still air） | 10 sec. max.（in stirred water） | -20℃ to 105℃ |
- Characteristics and connectors may be customized. （Please contact our sales representative.）
- Insulation resistance：100MΩ, min.
Withstanding voltage：1500V AC for 1 minute or 1800V AC for 1 sec - Up-to-150℃ capable types optionally available depending on applications （cross-linked polyethylene cable used）
Press here to return to the top of this page.

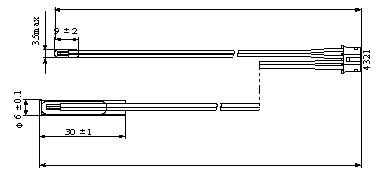

For air conditioners, contained in connectors
| Zero load resistance | B constant | Dissipation constant | Thermal time constant | Operating temp. range |
|---|---|---|---|---|
| R25：10KΩ | B25/50：3950K | 2.5mW/℃（in still air） | 8.0 sec. max.（in stirred water） | -20℃ to 105℃ |
| R25：10KΩ | B25/50：3950K | 5.0mW/℃（in still air） | 10 sec. max.（in stirred water） | -20℃ to 105℃ |
- Characteristics and connectors may be customized. （Please contact our sales representative.）
- Insulation resistance：100MΩ, min.
Withstanding voltage：1500V AC for 1 minute or 1800V AC for 1 second
Press here to return to the top of this page.

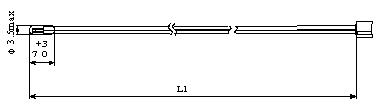

For refrigerators
| Zero load resistance | B constant | Dissipation constant | Thermal time constant | Operating temp. range |
|---|---|---|---|---|
| R0：6.35ＫΩ | B0/25：3830K | 7.0mW/℃（in still air） | 15 sec. max.（in stirred water） | -30℃ to 80℃ |
- Sensing temperatures of refrigerators, freezers, ice trays, etc.
- Characteristics and connectors may be customized. （Please contact our sales representative.）
- Insulation resistance：100MΩ, min.
Withstanding voltage：1500V AC for 1 minute or 1800V AC for 1 second
Press here to return to the top of this page.
For hot water supplies（with-leads type）
| Zero load resistance | B constant | Dissipation constant | Thermal time constant | Operating temp. range |
|---|---|---|---|---|
| R50 3.485KΩ | B0/100 3450K | 3.5mW/℃（in still air） | 2.0 sec. max. （90％ response in water） | -20℃ to +120℃ |
Press here to return to the top of this page.

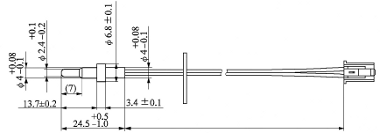

Hot water supplies（integrated in a connector）
| Zero load resistance | B constant | Dissipation constant | Thermal time constant | Operating temp. range |
|---|---|---|---|---|
| R50 3.485kΩ | B0/100 3450K | 3.5mW/℃（in still air） | 2.0 sec. max. （90％ response in water） | -20℃ to +120℃ |
- Insulation resistance：100MΩ, min. between protective tube and terminals （with 500V DC megohm meter）
- Withstanding voltage：No abnormalities to be observed with 1 minute application of 750V AC between protective tube and terminals.
Press here to return to the top of this page.

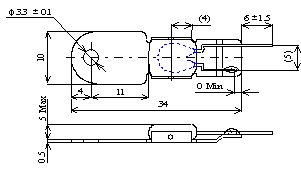

For temperature of air discharged from microwave ovens
| Zero load resistance | B constant | Dissipation constant | Thermal time constant | Operating temp. range |
|---|---|---|---|---|
| R120 1.62kΩ | B25/120 4 250K | 9.0mW/℃（in still air） | 120 sec. max. （in still air） | -20℃ to +120℃ |
- Upper temperature limit：150℃ for 1h
Press here to return to the top of this page.

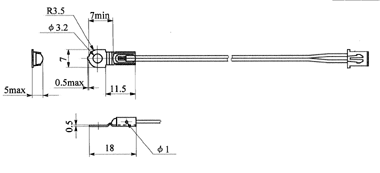

For surface temperature sensing
| Zero load resistance | B constant | Dissipation constant | Thermal time constant | Operating temp. range |
|---|---|---|---|---|
| R25 10kΩ | B25/50 3950K | About 3.5mW/℃（in still air） | 15 sec. max. （on an aluminum plate） | -20℃ to +105℃ |
- Characteristics and connectors may be customized. （Please contact our sales representative.）
- Insulation resistance 100MΩ, min. between terminal board and terminals （500V DC megohmmeter）
- Withstanding voltage: No abnormalities observed between terminal board and terminal （1800V AC for 1 sec.）
Press here to return to the top of this page.

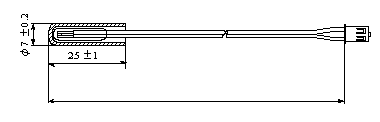

For high temperature sensing
| Zero load resistance | B constant | Dissipation constant | Thermal time constant | Operating temp. range |
|---|---|---|---|---|
| R100 3.3kΩ | B0/100 3970K | 4.2mW/℃（in water） | 8.0 sec. max. （in stirred water） | -40℃ to +200℃ |
